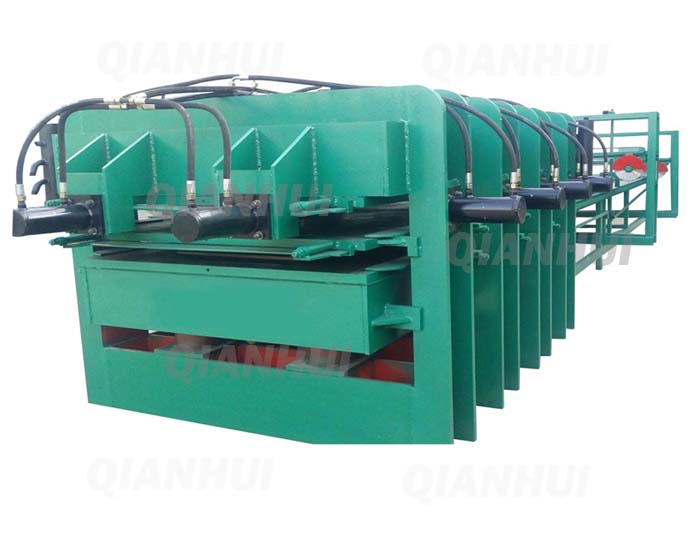

Four Sides Hot Press Machine Blockboard Joint Making Machine

Four Sides Hot Press Machine Blockboard Joint Making MachineFour Sides Hot Press Machine Blockboard Joint Making MachineFour Sides Hot Press Machine Blockboard Joint Making Machine
Product DETAILS

Technical Specification:


Model No.

BY214x8/3

Hot Platen Size

1300x2500x42mm

No.of Layers

3Layers

Layer Opening

100mm

Rated Pressure

25Mpa

Cylinder

φ180x6sets

Motor Power

20kw

Heating Medium

Thermal Oil

Dimension

11000x2200x1800mm

Weight

12000kg

Key Features:

1.This block board hot press machine is used to joint the blocks and press to core blockboard,with four sides pressing

2.Cylinder pressing to guarantee the joint quality

3.First joint compactly,then cut,which makes the wood batten length error less than 1 mm

4.Computerized control system improving the working efficiency.

5.To make the most of the wood material

6.High productivity and pressing speed,suitable for the quick pressing of big size boards

7.Servo driving system,electrostatic adhesion,integral infeed and outfeed system,CNC control system,synchronizing screw transmission system.It adopts the double cross frame structure,which can take the oil pressure 22 Mpa,So the finished boards are flat,no wrapping,and easily sanded,

8.It adopts the four sides pressing system ,which can joint multiple blocks seamlessly,and can improve the stretch resistance,pressure resistance and flatness of the core board,and guarantee the quality of the finished board,It integrates block jointing,cutting,auto feeding,auto pressing,suitable for making different sizes of blockboard,solid board,finger jointing board,shutting plywood ect shaping of core board,It increase the working efficiency and decrease labor intensity,
