Basic Technical Specifications for the Automatic Veneer Peeling Line
S/N | Machine Name | Specifications | Quantity |
1 | Log Cutting Line (composed of items 1-1,1-2,1-3,1-4) | Max cutting diameter:φ750mm， Cutting length:2000-6200mm Total weight:25000kg | 1 |
1-1 | Log-storing platform
| Dimension:6000×6200mm, motor power:7.5kw | 1 set |
1-2 | Three-step log loader
| Dimension:5000×3000mm, motor power:3kw | 1 set |
1-3 | Cutting head | 1000mm chain saw motor power:3kw | 2 sets |
1-4 | Log chucking device | Hydraulic chucking motor power:3kw | 5 sets |
2 | Belt conveyor for bark Chips from log debarker
| 13m flat belt+8m climbing type belt Motor power:5.5kw Weight:600kg | 1 set |
3 | Log loader for log Debarker | Length:4m, Motor power:1.5kw x 2sets Weight:600kg | 2sets |
4 | Log debarker (with bark chipping system)
| Max peeling length：1300mm Max peeling diameter：φ750mm Minimum peeling diameter：φ90mm Motor for rollers：11kwx2sets Motor for hydraulic station：5.5kwx1set Motor for chipping system：15kwx1set Dimension:3200x2500x2000mm Weight：6500kg | 2sets |
5 | Grooved roller conveyor For debarked logs | Length:5m, Motor power:1.1kw x 3sets Weight:800kg | 2sets |
6 | Log butting saw （for debarked logs）
| Log length before cutting：1300mm Log length after cutting：1270mm Cutting Diameter：φ1000mm No. Of saw blades：4 pcs Motor for saw blades：11kwx4sets Motor for feeding：1.5kw Weight:2500kg Dimension:1800x3000x1800mm | 2sets |
7 | Log loader for veneer Peeling machine | Length:2526mm, motor power:1.5kw Weight:1500kg | 2sets |
8 | Veneer peeling machine (Spindle and spindleless Peeling combined in one)
| Max peeling length：1300mm Max peeling diameter：φ700mm Leftover diameter：φ30mm Peeling thickness：0.5-3.0mm Peeling speed：40-120m/min Motor for rollers：7.5kwx3 sets Motor for feeding：11kw servo motor x 1 set 7.5 kw servo motor x3sets Motor for chucking spindle：15kw Total weight：9500kg Dimension：6000x2500x1800mm | 2sets |
9 | Veneer clipper
| Max cutting length：1300mm Cutting width range：500-2600mm Diameter of rubber roller：φ200mm Cutting thickness：0.5-3.0mm Cutting speed：40-120m/min Motor power：3kwx2sets Motor weight：900kg Dimension:2000 x2500x1000mm | 2sets |
10 | Veneer stacker
| Stacking veneer size：1270x（600-900）x (1.0-3.6）mm Sorting method：Sorting into A,B,C three grades，A grade stacked into two piles Stacking speed：≤90m/min Stacking height：1000mm Stacking method：Vacuum fan No. of vacuum fan：6sets Motor for vacuum fan：2.2kw Lifting method：hydraulic lifting table Motor power：25kw Dimension:11000x2800x2100mm Weight:4300kg | 2sets |
11 | Central control system | PLC,Remote control screen,monitor | 1 set |

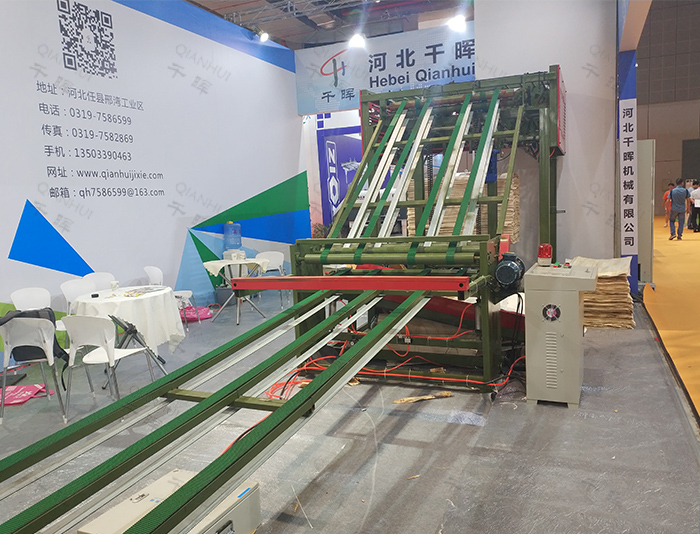

More Photos of This Peeling Line
