Technical Specification:
Item | Log Debarking Machine Heavy Duty Log Debarker | |
Model | BX1400 | |
Max Debarking Length | 1300mm | |
Max Debarking Diameter | φ500mm | |
Min Debarking Diameter | φ80mm | |
Roller Diameter | φ150mm | |
Debarking Speed | 5s/Log | |
Roller Type | Wolf Teeth/ Gears | |
Gearbox Type | Vertical Cycloid Pin Recuder | |
Balancing System | Pinion & Rack | |
Motor For Rollers | 7.5kw x 2 sets | |
Hydraulic Station Motor | 4.0kw x 1 set | |
Dimension | 3000x2300x1100mm | |
Weight | 3000kg | |
Model | BX2700 | |
Max Debarking Length | 2600mm | |
Max Debarking Diameter | φ500mm | |
Min Debarking Diameter | φ80mm | |
Roller Diameter | φ150mm | |
Debarking Speed | 5s/Log | |
Roller Type | Wolf Teeth/Gears | |
Gearbox Type | Vertical Cycloid Pin Reducer | |
Balancing System | Pinion & Rack | |
Motor For Rollers | 7.5kw x 4 sets | |
Hydraulic Station Motor | 5.5kw x 1 set | |
Dimension | 5500x2300x1300mm | |
Weight | 5600kg | |
Key Features:

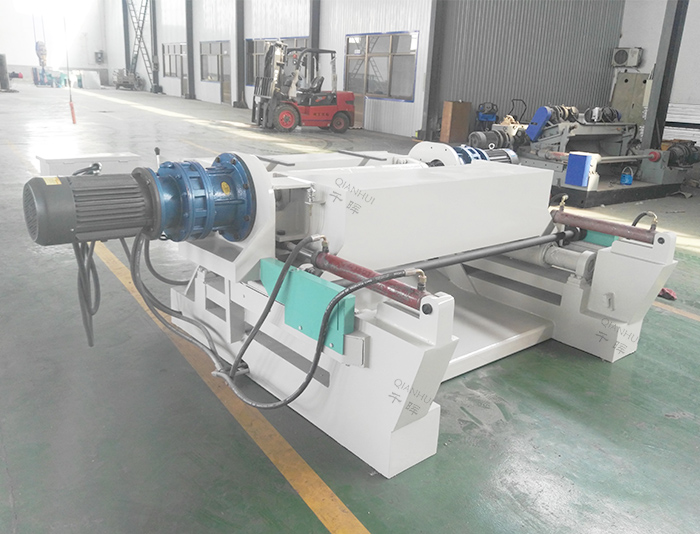

1.This log debarker machine is used to debark and round the wood logs,in veneer making industry, wood house making industry ,and other woodworking related industry .
2. Enlarged roller diameter φ150mm,debarking rounding speed is faster .
3. Rollers made by gears or made to wolf teeth shape,this will be better for debarking and rounding of hard & bend wood logs,such as eucalyptus,rubber wood,etc.
4. Vertical cycloid reducers are used on this debarker machine, which is stronger than horizontal cycloid reducers, not so easily broken as horizontal model .
5. Rack and Pinion balancing system are used on the machine,to keep the machine running more stable ,and extend the working life of the machine .
6.Hydraulic feeding system makes feeding more smooth,more suitable for rounding of bend logs
