Technical Specification:
Model No. | BQ1400 | ||
Working Length | 1400mm | ||
Cutting Width | 500-2600mm | ||
Cutting Thickness | 1.0-10mm | ||
Rubber Roller Diameter | φ125 | ||
Cutting Speed | 20-70m/min | ||
Dimension | 10000x2000x1000mm | ||
Weight | 1000kg | ||
Model No. | BQ2600 | ||
Working Length | 2600mm | ||
Cutting Width | 1300-2600mm | ||
Cutting Thickness | 0.3-3.6mm | ||
Rubber Roller Diameter | φ260 | ||
Cutting Speed | 20-70m/min | ||
Dimension | 10000x3400x1000mm | ||
Weight | 2300kg | ||

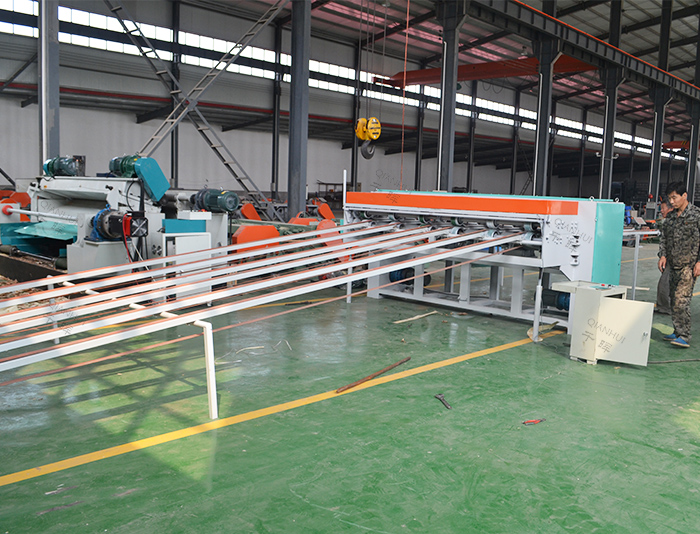

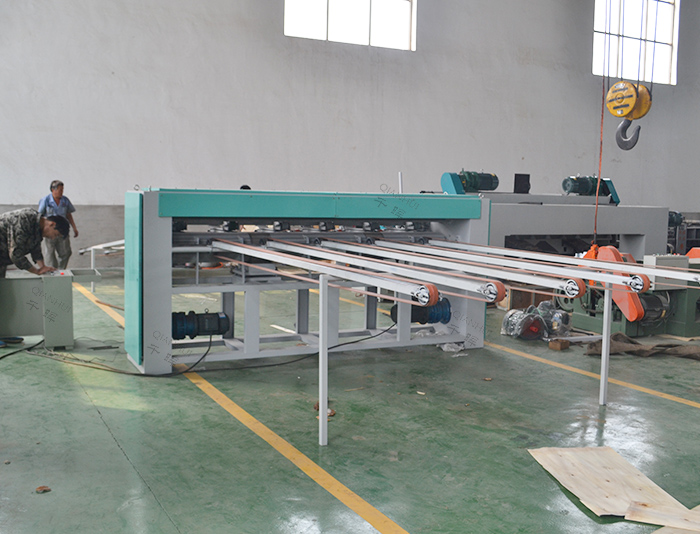

Key Features: 1.Rotary Veneer Clipper Machine, 2.Numerical Control,Easily Operated 3.Cutting Width Adjustable , 4.Can be directly used after spindleless and spindle peeling machine | |||
