India Model High Speed Spindleless Veneer Peeling Machine for Core Veneer

India Model High Speed Spindleless Veneer Peeling Machine for Core VeneerIndia Model High Speed Spindleless Veneer Peeling Machine for Core VeneerIndia Model High Speed Spindleless Veneer Peeling Machine for Core VeneerIndia Model High Speed Spindleless Veneer Peeling Machine for Core Veneer
Product DETAILS

Technical parameters of this 4ft veneer peeling machine

Part A


Max Peeling Length

1300mm

Max Peeling Diameter

Φ500mm

Leftover Log Diameter

Φ22mm

Peeling Thickness

1.0-3.0mm

Thickness Tolerance

±0.05mm

Peeling Speed

30-90m/min

Peeling Blade Size

1500x180x16mm

Part B


Diameter of Single Roller

Φ124mm

Diameter of Double Roller

Φ126mm,upper and lower rollers crossing structure

Special Structure

Two Pressing Sliding Bar on top of the Machine

Lubrication Method

Automatic Lubricating Pump

Lead Screw

Φ72mm Double-Thread Lead Screw

Part C


Motor for Feeding

11kw servo motor x 1 set

Motor for Single Rollers

11kw x 2sets

Motor for Double Rollers

11kw x 2sets

Motor for Clipper

1.5kw x 2 sets

Motor for Outside Conveyor

1.5kw x 1set

Reducer For Roller Motors

Square Hardened Reducer

Reducer for Feeding Motor

Square Hardened Reducer

Reducer for Cutter

RV90 Worm Gear Reducer

Reducer for Outside Conveyor

Cycloidal Reducer

Part D


Controller for Servo Motor

15kw Servo Drive

Controller for Single Roller

30kw Frequency Converter Drive

Controller for Double Roller

30kw Frequency Converter Drive

Controller for Clipper Blade

3.0kw Frequency Converter Drive

Controller for Rubber Roller

3.0kw Frequency Converter Drive

Controller for Outside Conveyor

 3.0kw Frequency Converter Drive

Control Screen

Touch Screen With Wifi Remote Control Function

Pard E


Leftover Log Knocking System

 Air Cylinder

Part F


Dimension

3900x2000x1450mm

Weight

6500kgs


Key Features:

1.Big Diameter: Max peeling diameter up to 500mm,

2.Heavy Duty: Weight 6500 tons

3.Powerful: Roller motors:11kw x 4 sets, feeding motor :11kw servo motor x 1set

4.Stable: There are two sliding bar pressing on the top of the machine,which makes the machine more stable when running

5.Easy Maintenance: There will be error numbers shown on the control drive,and we will find out the problem when you tell us the error numbers.

6.Remote Control: Wift remote control touch screen is used on this machine,we can help you to set the paremeters easily at our side .


More Photos and Shipment

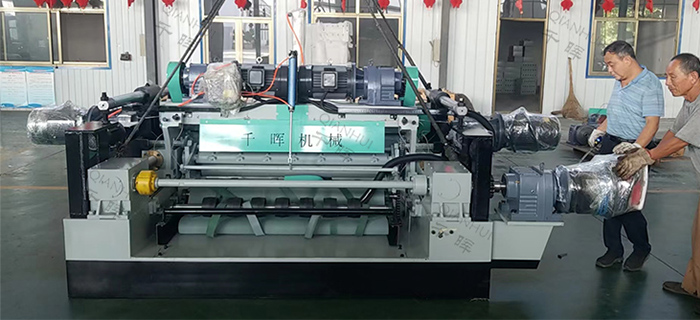

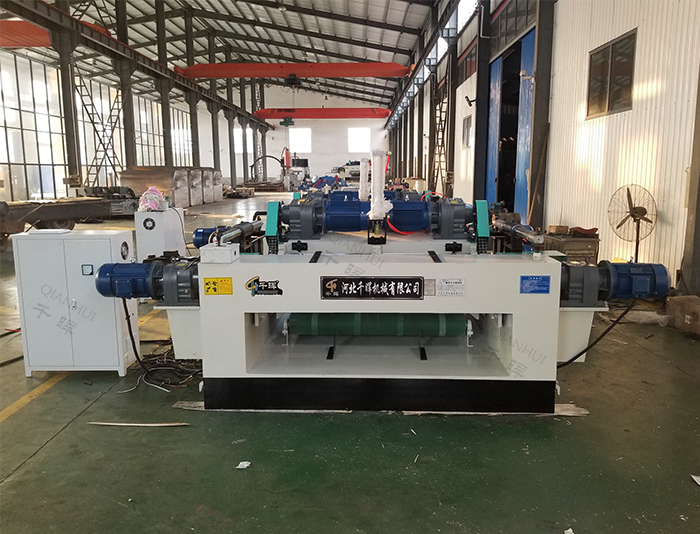

6.5ton veneer peeling machine

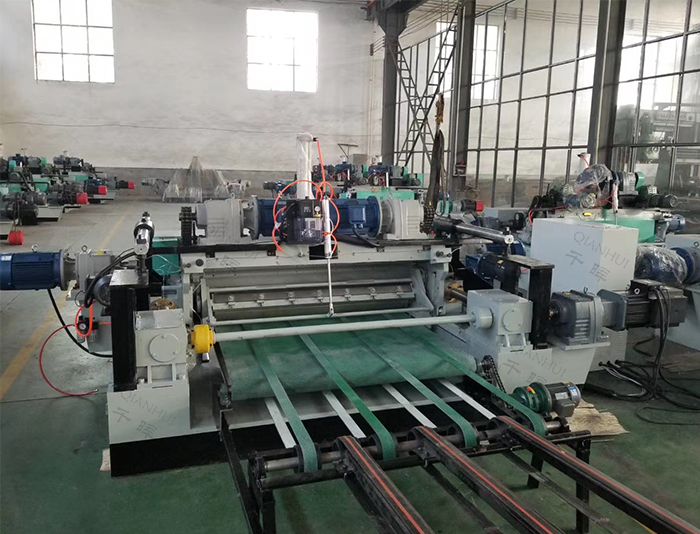

the cutter belt of 6.5ton veneer peeling machine

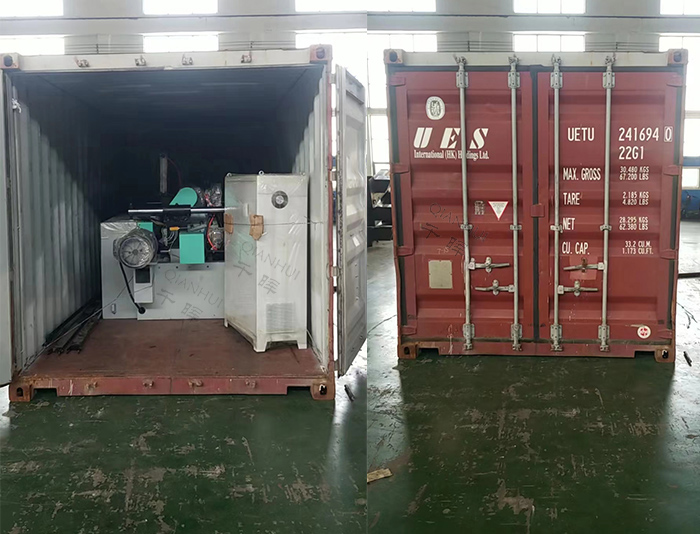

6.5ton spindleless veneer peeling machine loading container

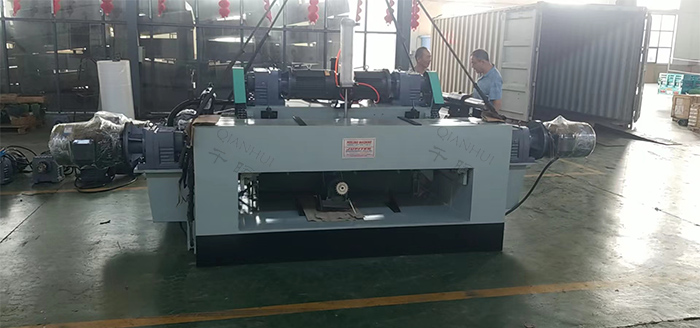

loading container veneer peeling machine

veneer peeling machine loaded into container
