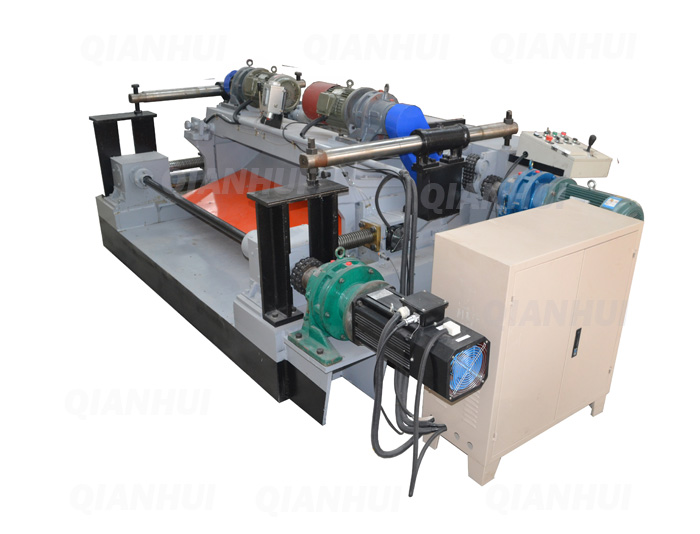

Hardwood Veneer Peeling Lathe Machine With Servo

Hardwood Veneer Peeling Lathe Machine With ServoHardwood Veneer Peeling Lathe Machine With ServoHardwood Veneer Peeling Lathe Machine With Servo
Product DETAILS

 Technical Specification:

Model No.

 BX1400A-3


Max Peeling Lathe

 1300 mm


Max Peeling Diameter

 360 mm


Left Log Diameter

 26 mm


Peeling Thickness

0.4-2.8mm


Thickness Error

±0.05 mm


Peeling Speed

46m/min


Knife Size

1400x180x16 mm


Roller Diameter

102 mm


Roller Motors

4.0kwx2 sets, 5.5kwx1 set


Feed Motor

7.5kw servo motorx1 set


Control System

11kw Servo Drive


Dimension

3500x1900x1350 mm


Weight

4500 kg


Key Features:

1. Servo System:This veneer lathe is equipped with 7.5kw Servo motor and 11kw Servo Drive Inverter,the control precision is much better than normal motor and normal inverters

2. Heavy Duty:The weight of this veneer lathe is 5300kg,much heavier than other model of machines,so the machines runs very stable,and the peeling precision will be very good,and this makes it suitable for peeling all kinds of hardwood logs

3. Slide pressing   bar: There are two slide pressing bars on top of the machine,to press the knife and single roller table,so as to keep them more stable when the machine working,and to keep the high precision

4. Popular in India  and Indonesia: we have agent in India and Indonesia,they are selling this model in their countries and the selling is very good,customers think highly of this machine because of its good veneer quality and good machine performance .

5.High Rigidity Rollers:Rollers are quenched and chrome plated,rigidity is better and harder,service life longer .

6. Bearings Well Sealed :All bearings are attached with seals,which makes the bearings better lubricated and can be used for longer time .
